NOVA Chuck Insert

NOVA uses an easy and inexpensive insert/adaptor system on all its NOVA insert chucks e.g. G3, (apart from chucks that are directly threaded).

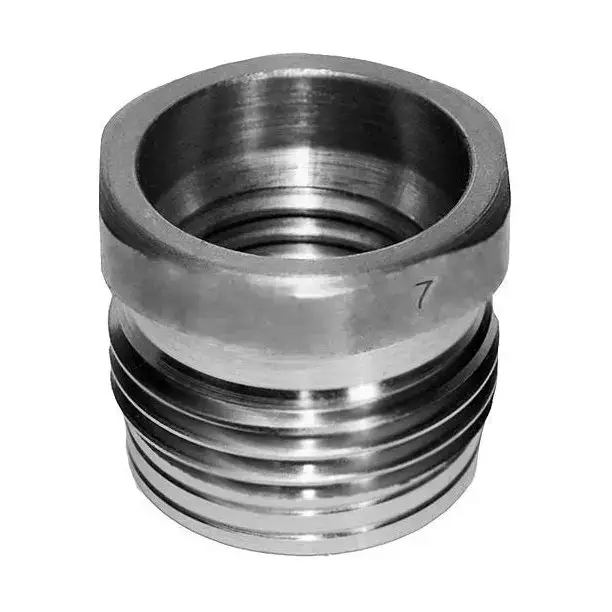

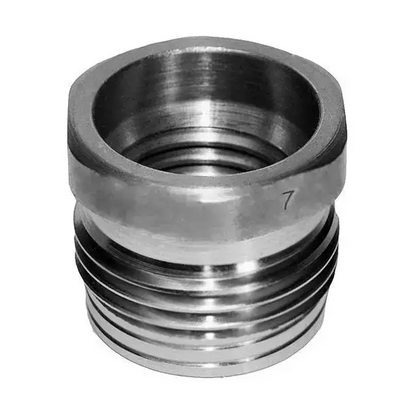

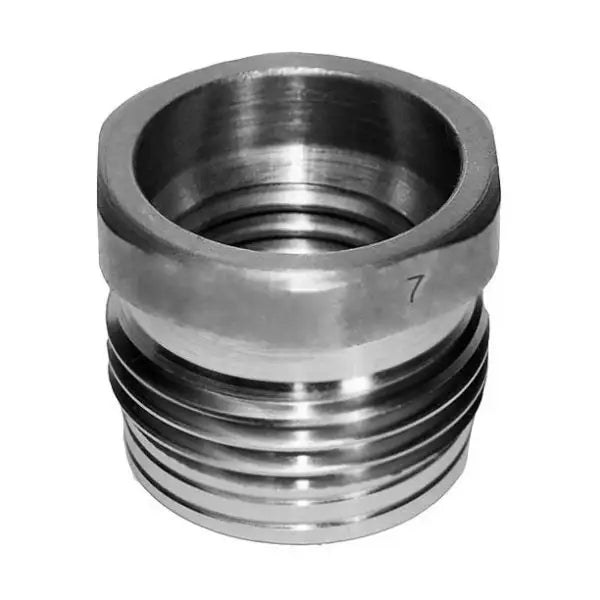

The insert has different lathe spindle thread sizes internally and simply screws into the back of your NOVA chucks.

Once the insert is in place, you can then put your chuck onto your lathe.

NOVA has a range of chucks along with inserts in order to fit the majority of lathes that are currently available on the market.

The insert/adaptor versions of NOVA chucks all use the same insert/adaptor system to ensure maximum adaptability and flexibility for the user.

How does the Nova Chuck Insert System Work?

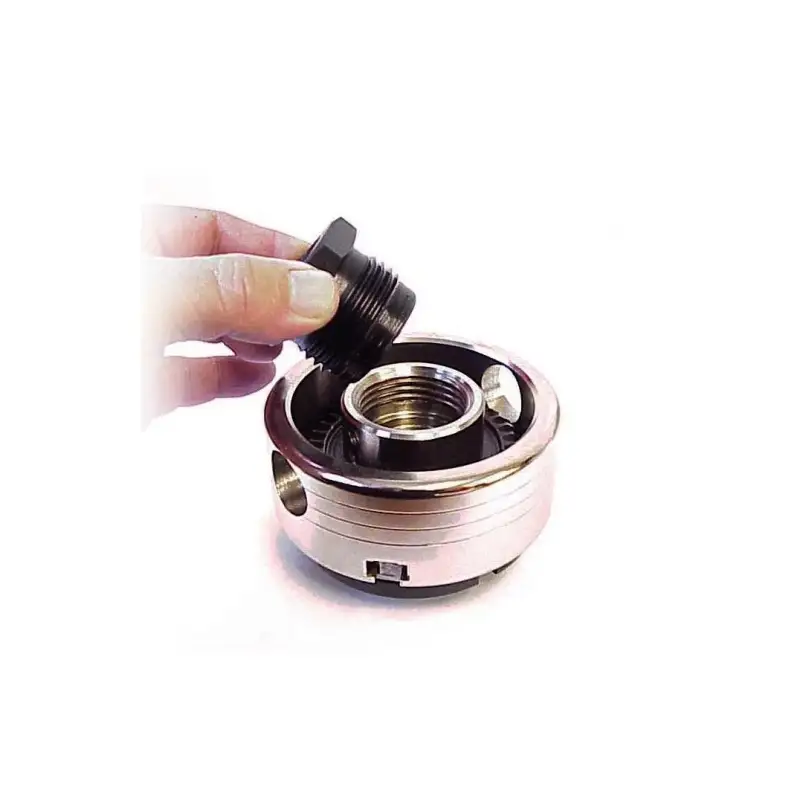

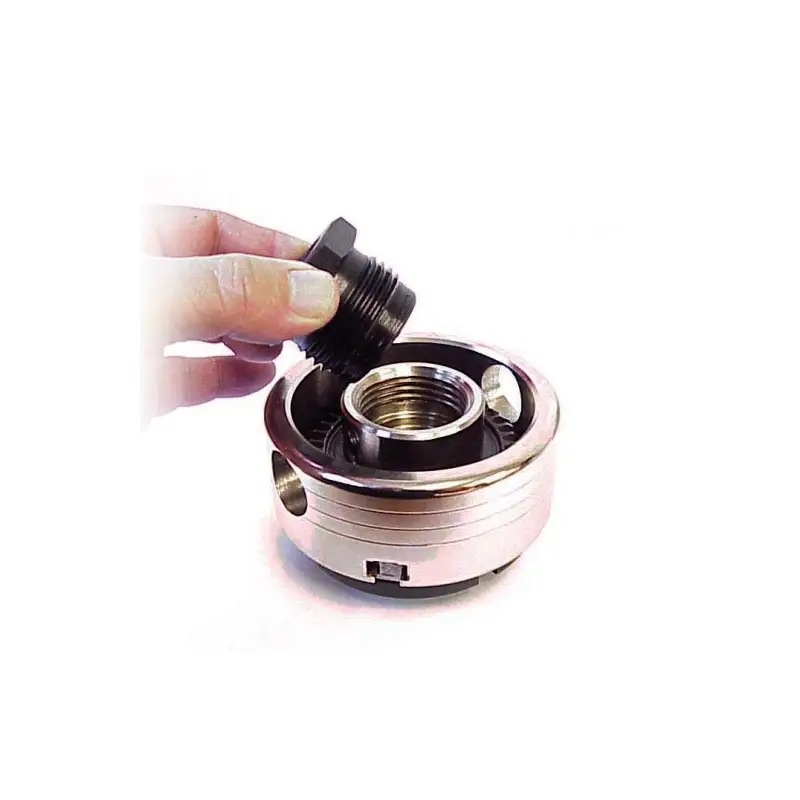

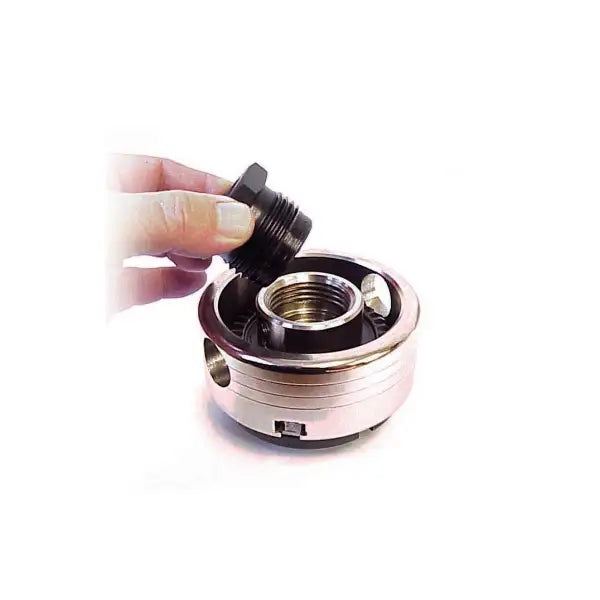

The insert fits into the back of the chuck and onto your lathe headstock spindle. The inserts are threaded both inside and out. The outside thread is made to fit into the NOVA Chucks. The inside thread comes in a variety of sizes. The size you need is determined by your lathe spindle thread size.

If you have reliable information for your spindle thread size but there is no available insert, you may have an unusual lathe that NOVA doesn’t have an adaptor for. You will need to purchase a blank chuck or a blank insert/adaptor and get it threaded to your requirements.

Some thread sizes we direct thread into the chuck body. Therefore, these don’t require insert adaptors. A directly threaded chuck body cannot be altered to an insert type body or another thread size once threaded. Be sure that your lathe thread size is not covered by the insert/adaptors first!

Terminology:

• BSF: British Standard Fine
• BSW: British Standard Whitworth
• RH: Right hand
• LH: Left hand
• TPI: Threads per inch
• UN: Unified National Standard
• UNC: Unified Coarse Standard
• UNF: Unified Fine Standard
• UNS: Unified Special
