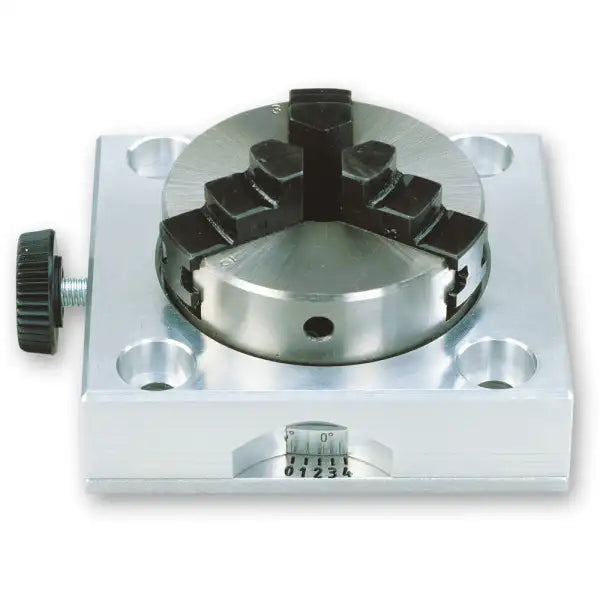

Proxxon Dividing Head For KT 70 & TBM 220

Proxxon dividing head for the MF 70 and KT 70 (24264)

The Proxxon dividing head (24264) is for the MF 70 micro milling machine and MICRO compound table KT 70. Use it to machine circular workpieces, offset holes, milled portions and four- or six-sided material with absolute accuracy.

Specification

• Product: dividing head
• Item no.: 24264
• Size: 72 x 64 x 38mm
• Division: nonius scale on the base body
• Chuck jaws: reversible, 1.5–32mm inside, 12–65mm outside
• Bore: 11mm, for working longer spindles vertically
• Mounting: fastening bores and slot nuts, horizontal or vertical
• Supplied in: wooden box with sliding lid

Ideal for

• Milling flats, squares and hexagons
• Drilling hole circles
• Model engineering

Please note

The product name refers to the KT 70 and TBM 220, while the text supplied with it refers to the MF 70 and KT 70.
