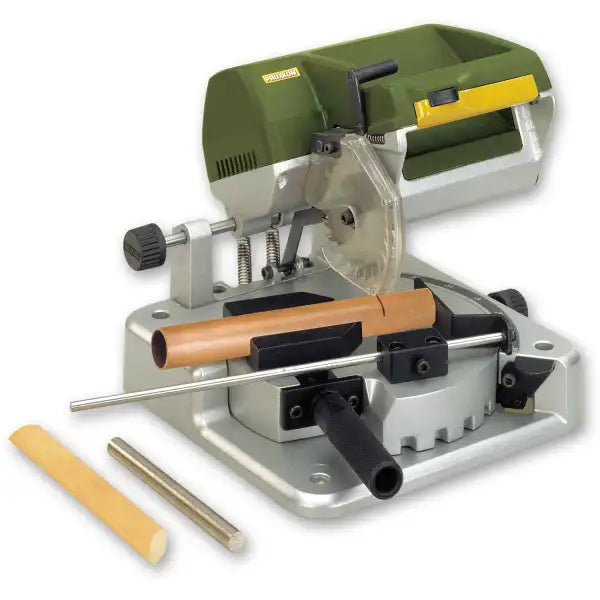

Proxxon KGS 80 Mitre Saw

Proxxon KGS 80 Mitre Saw

Ideal for mitre cuts: Adjustments are made to the round table (with clamped work piece) and not to the headstock!

The opposite angle for a second frame part of identical length occurs through simple shifting with the longitudinal stop and by rotating the table by 2 x 45°. Powerful, quiet DC-motor. Smooth toothed belt drive ensures power transmission. Tungsten-tipped saw blade for non-ferrous metal, wood and plastics (80 x 1.6 x 10mm, 36 TPI).

Other technical data: 230V. 200W. 50/60Hz. 6,000rpm. Base with round table of highly stable die-cast aluminium with CNC-milled fittings and slides. Table 230 x 230mm. Weight 6kg. See table for cutting capacity.

• Laterally moving saw head to minimize the distance between the vice holding the workpiece and the kerf. For cutting without vibration and chattering!
• Fence adjustable to 300mm.
• Comfortable grip with built-in switch and saw head release button.
• Round table made of die-cast aluminium, rotates 45° left and right. Positive stops in 15° increments.
• Integrated clamping system with fixed jaws. V-slot for round workpieces. Front side slot allows thin pieces to be clamped.



Cutting capacity at 90° (right angle cut):

Material size (in mm)	Max. material width (in mm)	Round material (in mm)
10 18 21 25	65 50 40 25	Ø max. 25





Cutting capacity at 45° (mitre cut):

Material size (in mm)	Max. material width (in mm)	Round material (in mm)
5 10 15 20	36 30 25 18	Ø max. 20
