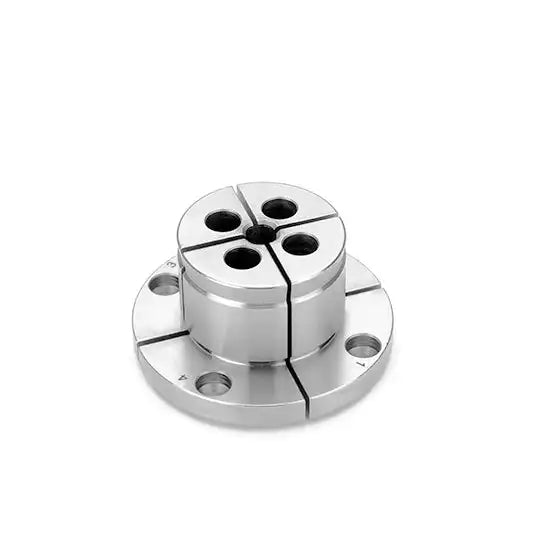

Record Power Pin Jaws for SC1 & SC2 Mini Chucks

Pin Jaws for SC1 & SC2 Mini Chucks 62302

Another of the most popular Record Power jaws for full size chucks – these are also ideal for smaller chuck projects too.

Record Power have set the range of these bodies to be compatible with most tea light holder designs (on either body) as well as many salt or pepper pot designs and these offer an excellent expansion grip for many projects.

The end of the jaw is dovetailed so can be used on its own as a delicate grip – or the jaw can be inserted full length using the back jaw face as a register and providing wall support to prevent the workpiece being knocked from a dovetail only grip. The dovetail at the end provides additional security in expansion mode.

• SC1 Expansion: 39 - 47.5 mm
• SC1 Contraction Spigot: 6 - 14.5 mm
• SC1 Contraction Square: 4.5 - 12 mm
• SC2 Expansion: 39.5 - 60 mm
• SC2 Contraction Spigot: 6 - 26 mm
• SC2 Contraction Square: 4.5 - 25 mm
